Camera Housing Gallery Page 1

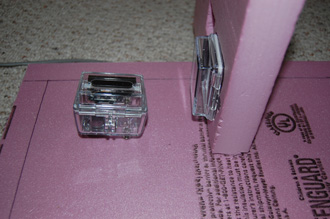

Laying out all the pieces trying to figure out a good layout to conserve space. |

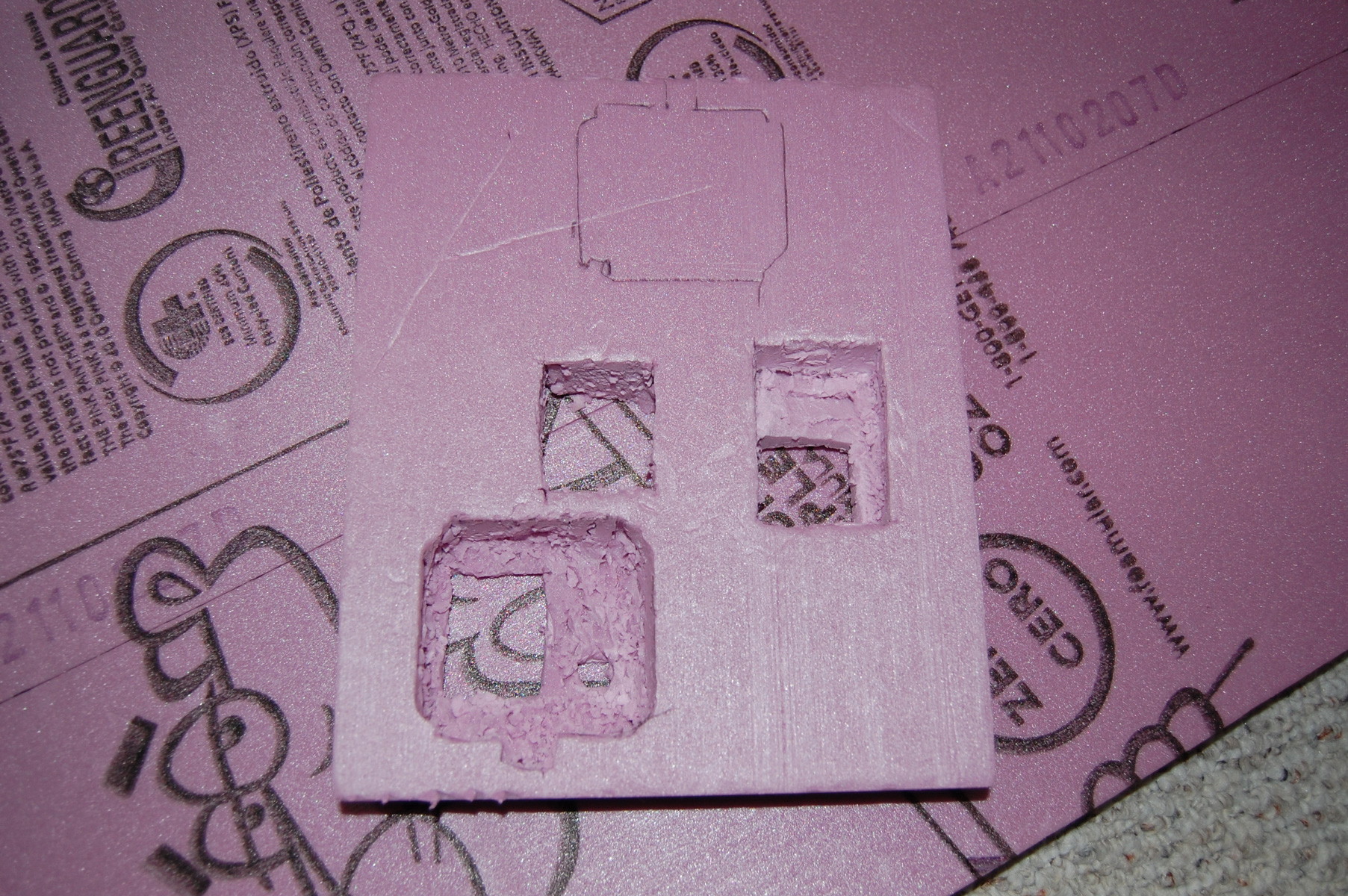

I made a test panel to see how the camera would function behind the foam |

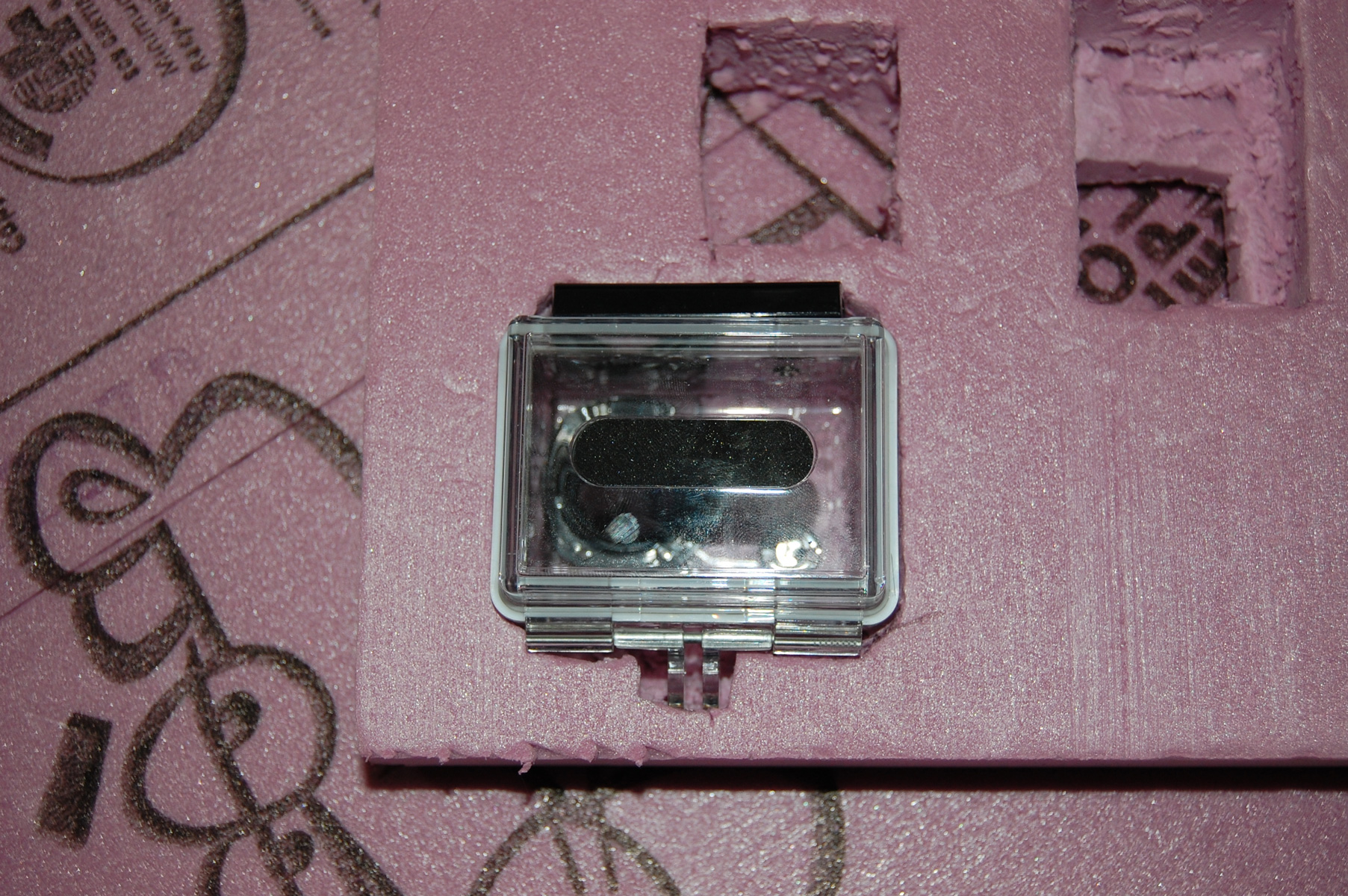

Here you see the camera back inserted into the foam that was just carved out |

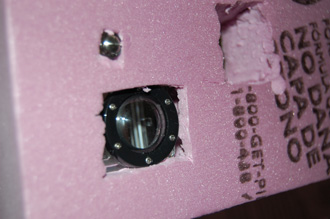

Outside view of the camera lens and the on off button I also had to carve out. |

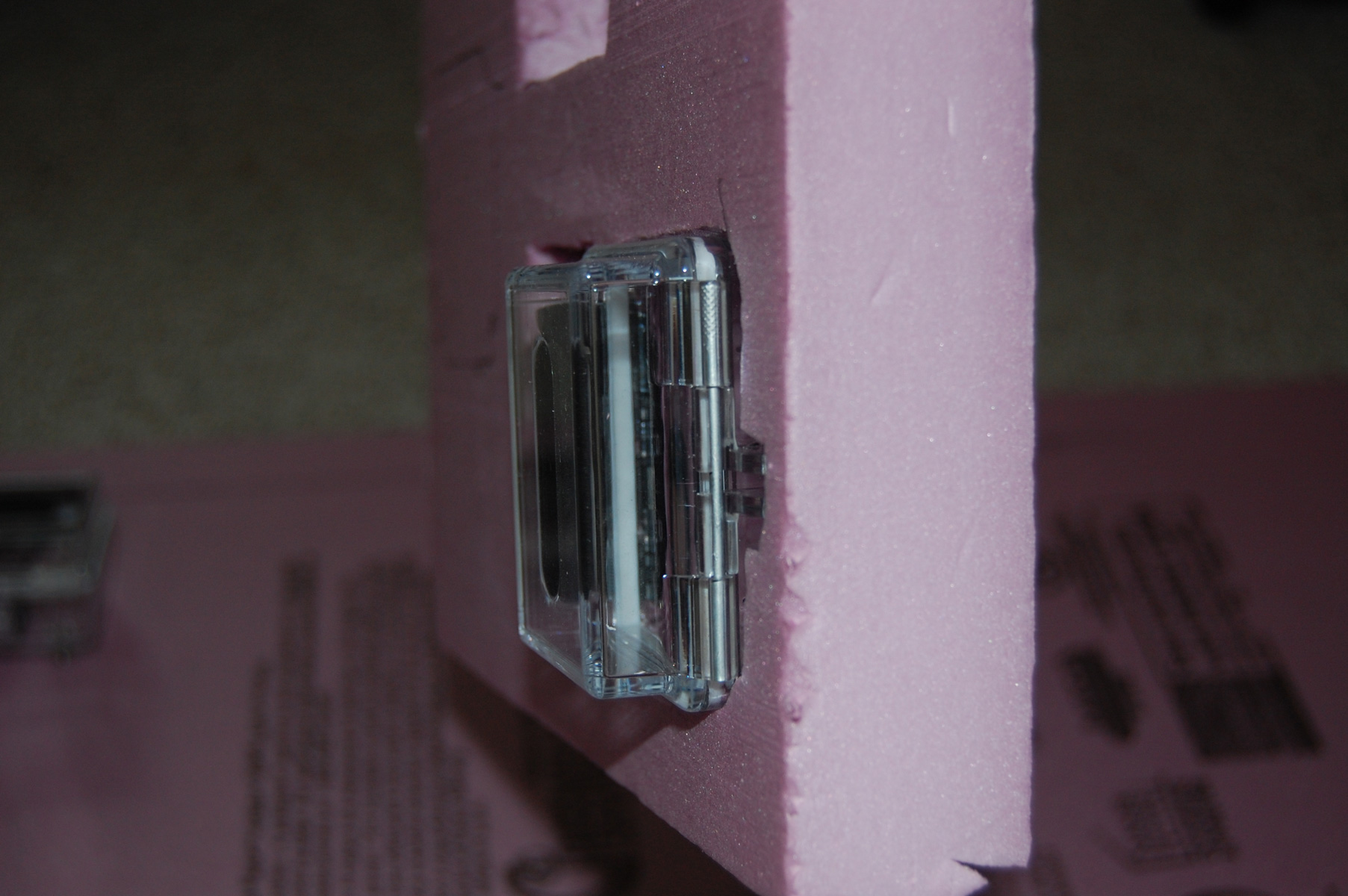

Side view showing the depth of the camera carved into the foam. |
Plotting on how wide the bottom of the box should be. |

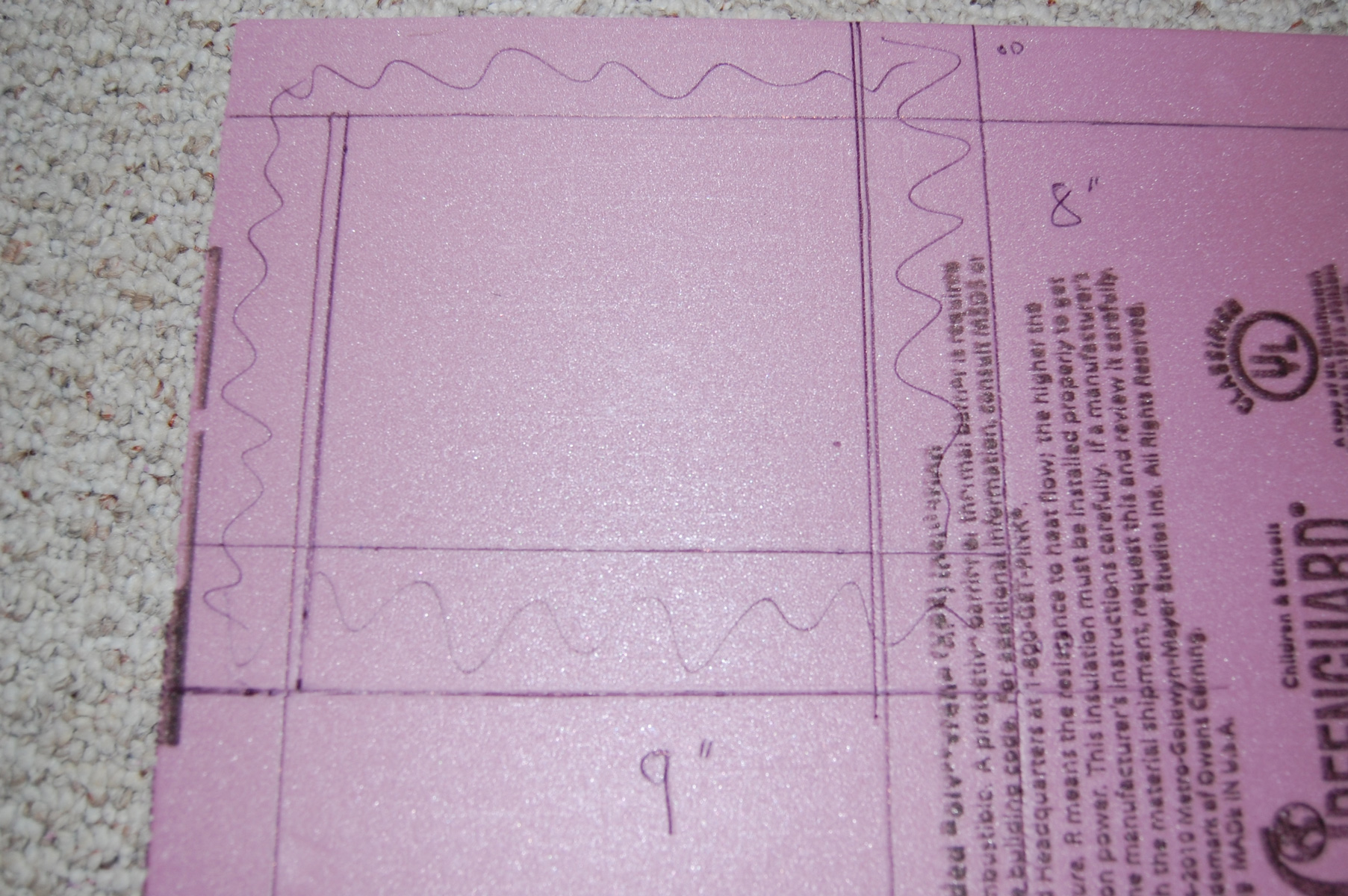

This is the bottom of the box size. The sqiggly line represents where the walls will be. |
Cutting out the first wall. Note the amount of determination, it would have been easier with a jigsaw so buy one lol |
