Camera Housing Gallery Page 2
Side view of me cutting the foam. I found out later that a jigsaw is much much easier then by hand. |

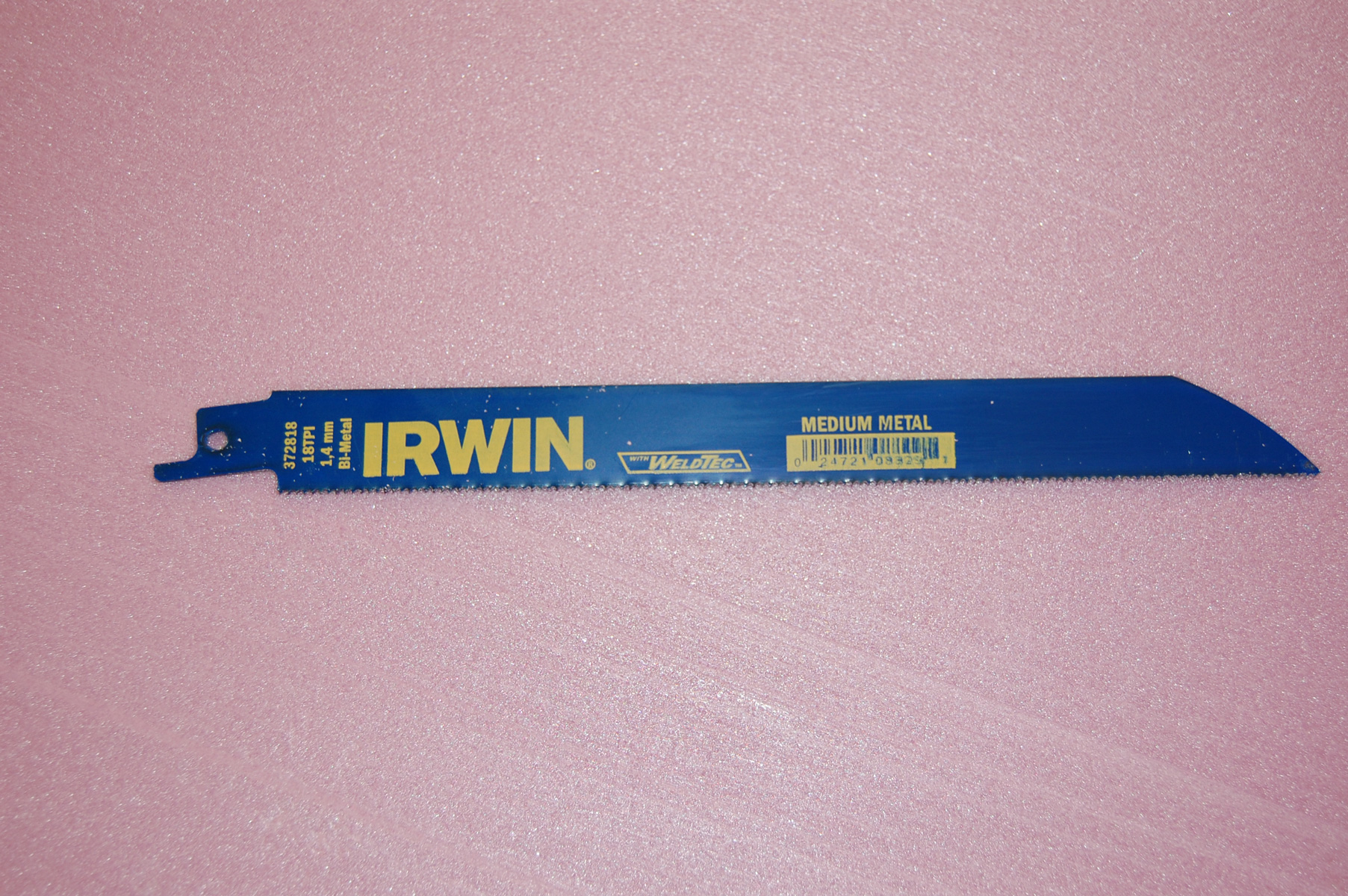

Jigsaw blade that I used to cut the foam. Use a fine tooth saw so it doesnt damage the foam. |

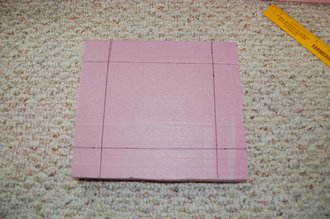

The base all cut out with lines drawn where the walls will be placed. |

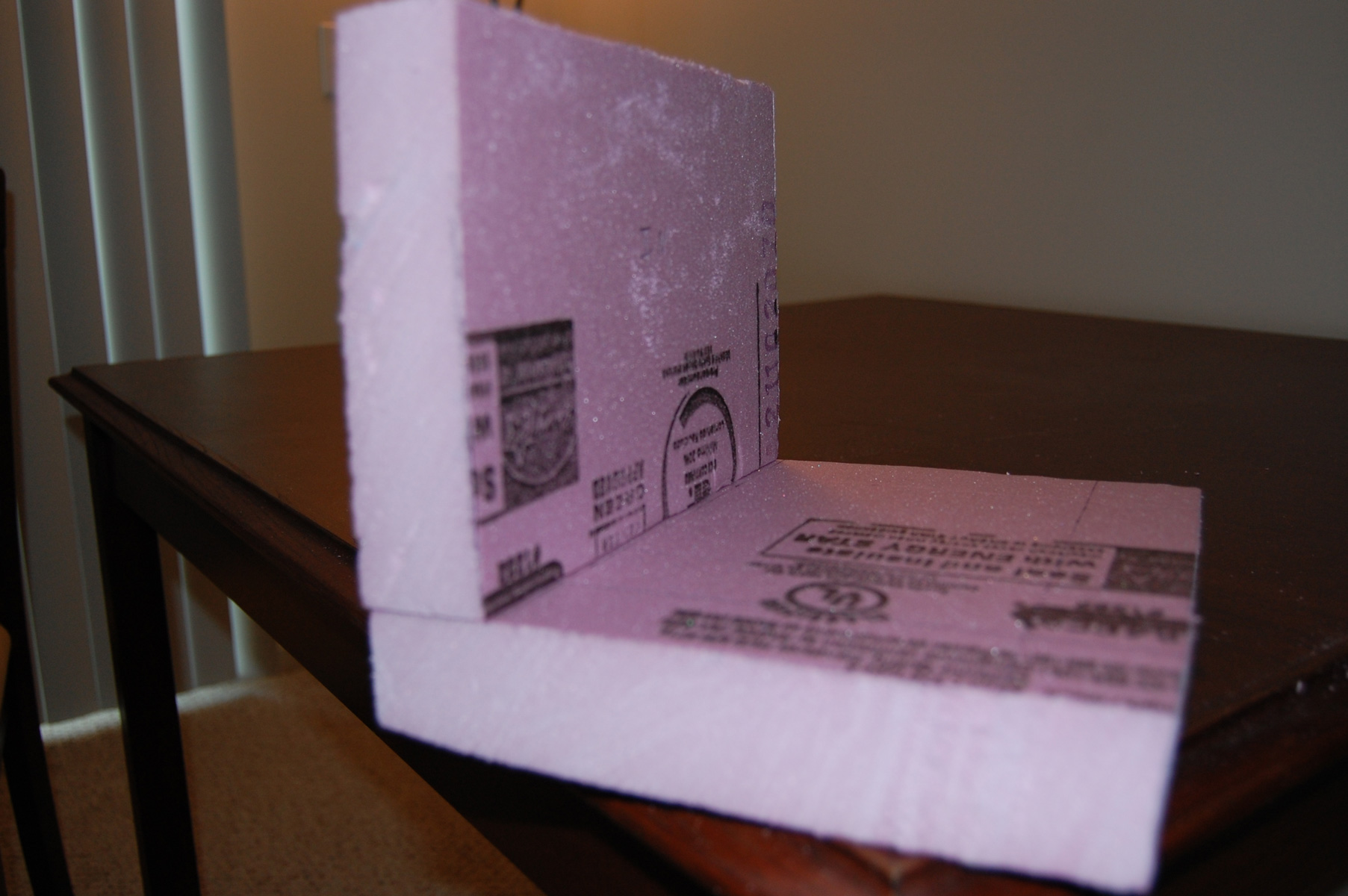

Test fitting the wall to make sure it will line up properly. |

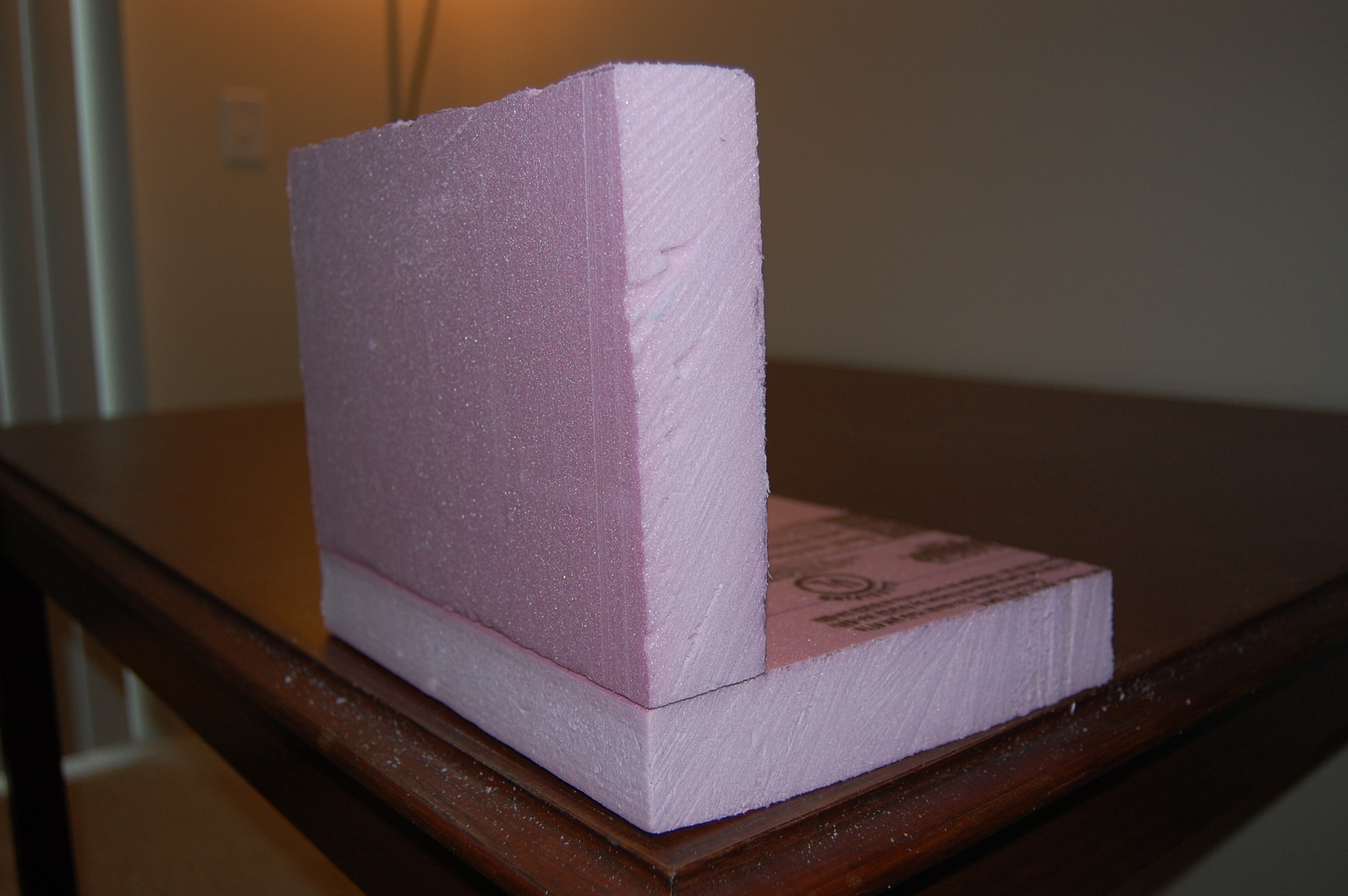

Side shot of the wall. |

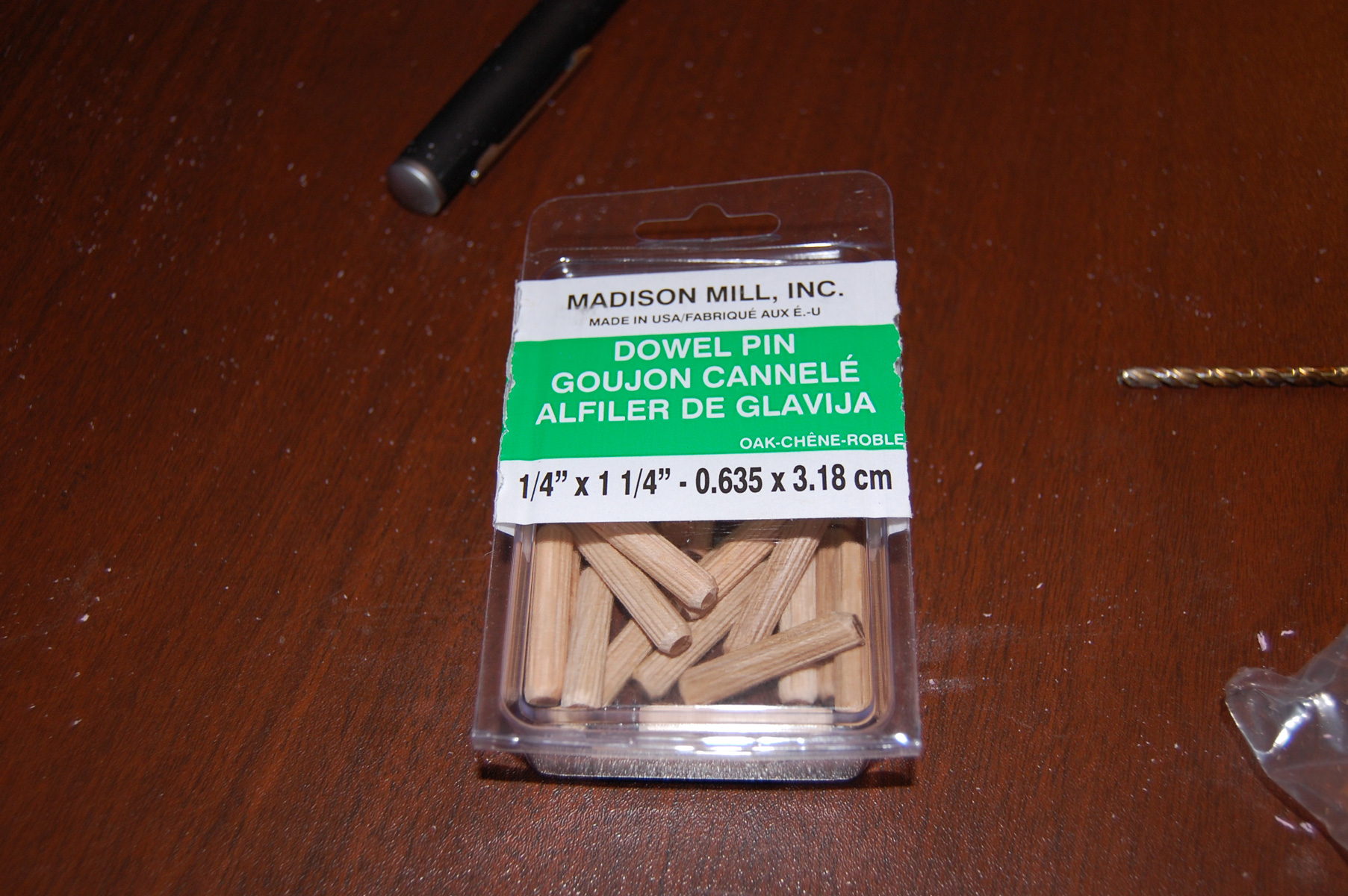

I used dowel pins in the foam to give a little bit more rigidity to the foam. |

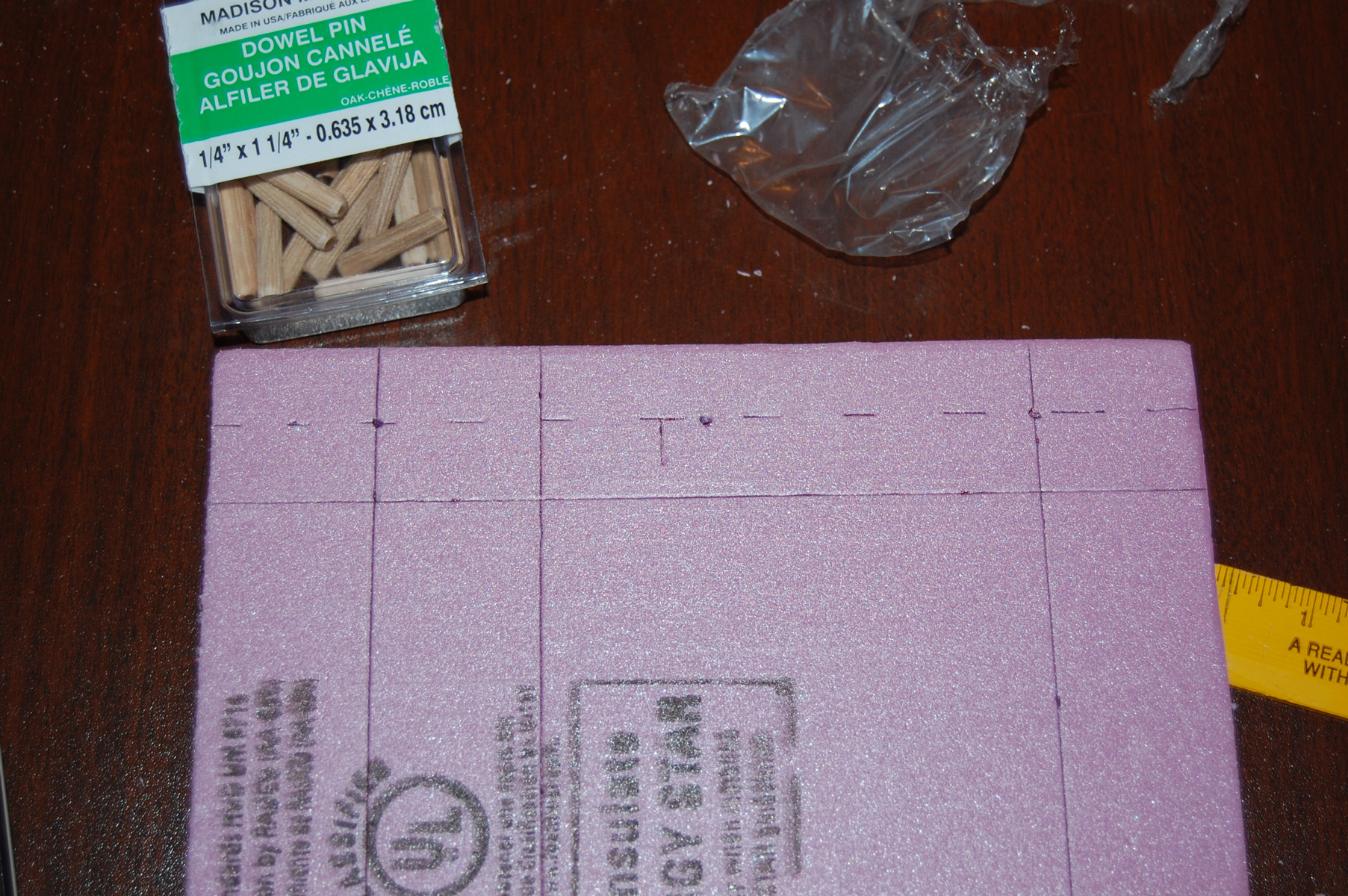

Marking where I wanted the dowel pins to go, notice it is in the middle of the foam so it doesnt crack or break the foam. Make sure to line them up straight. |

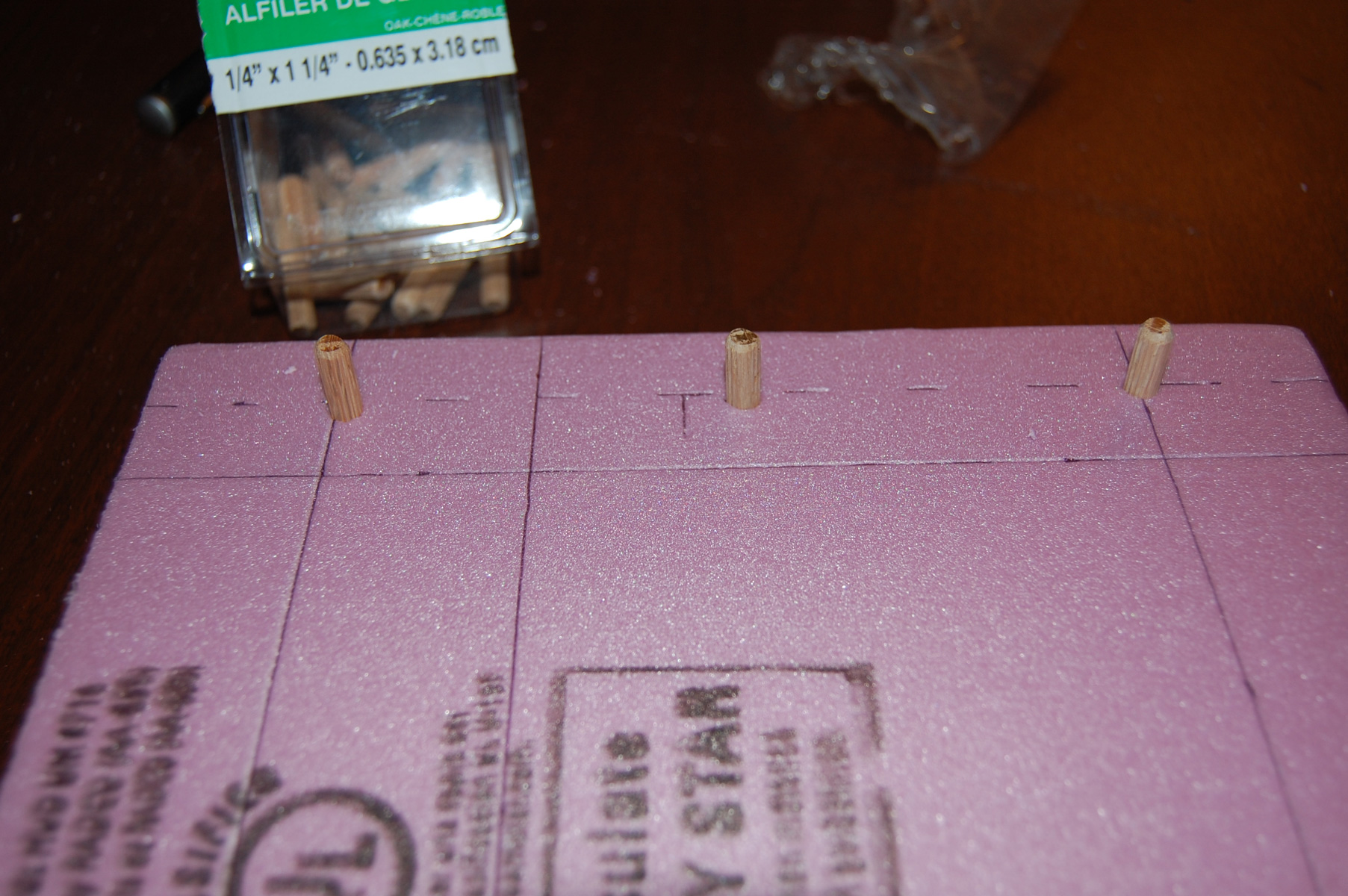

Test fitting the dowel pins. I used a drill bit to just drill part of the way through the foam. This will add a lot of strength so I dont have to rely just on glue to hold it. |
